Regulator MTX-R SIDEMOUNT SET

The APEKS MTX-R Sidemount Set is a technical scuba regulator designed for cold water diving and advanced sidemount configurations. This scuba regulator set offers superior performance at depth thanks to its unique overbalanced diaphragm design, which allows the average pressure to increase faster than ambient pressure as the diver descends. The forged first stage, with ribs for maximum heat exchange, and the over-moulded endcap seal system provide excellent freeze protection in cold water conditions (below 10°C). EN250A certified for use with Octopus in cold water, the MTX-R is a professional diving equipment ideal for technical diving, wreck diving and cave diving.

Main benefits

• Dedicated technical scuba regulator for sidemount configuration
• Superior performance at depth due to Over-Balanced design
• Suitable for cold water (below 10°C / 50°F)
• EN250A certified for use with Octopus in cold water
• Nitrox/Oxygen compatible up to 40% O₂ (according to international regulations)

Technical specifications

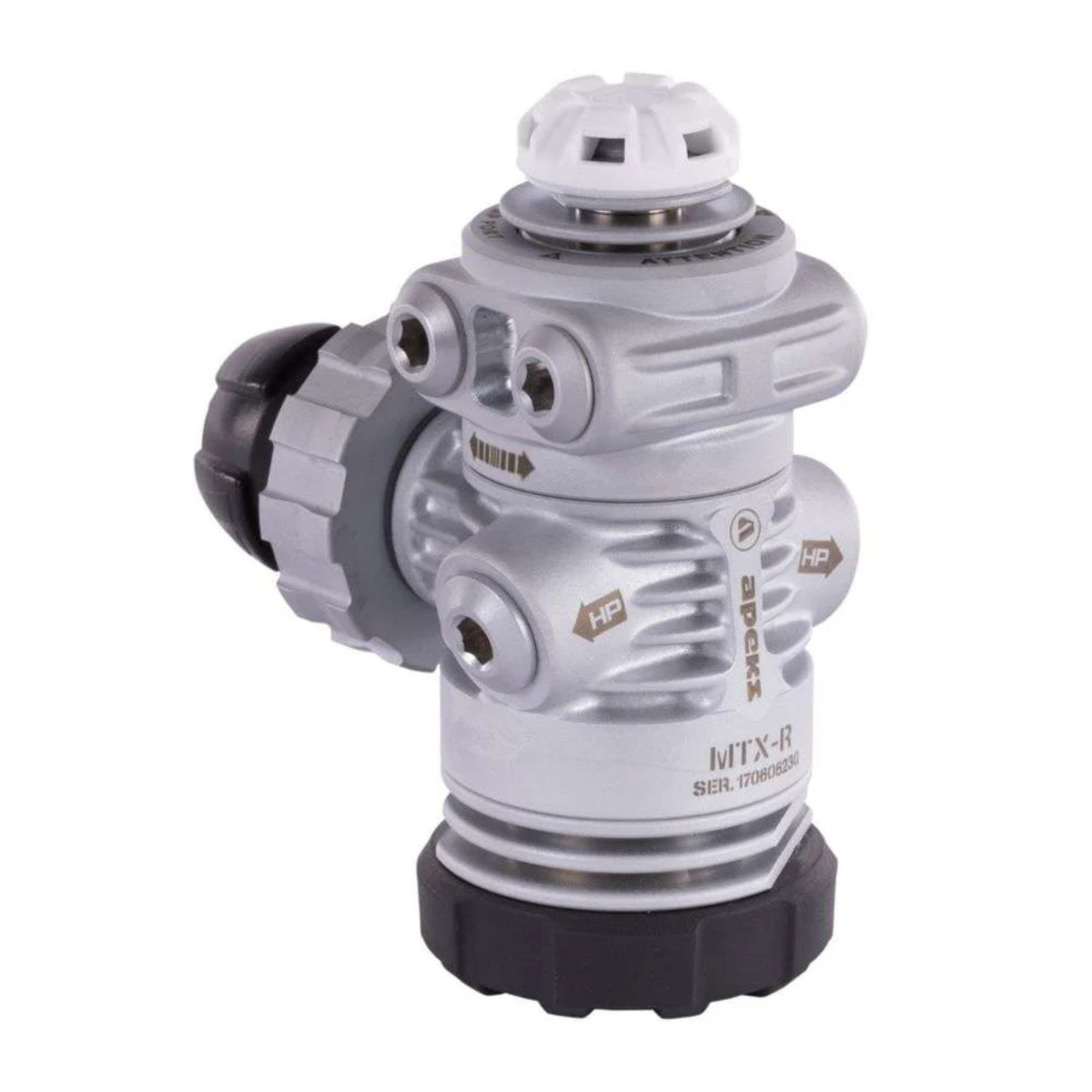

First step

• Available in DIN or Yoke configuration
• Over-Balanced Diaphragm
• Forged ribbed body for maximum thermal performance
• Over-molded endcap and ambient diaphragm for freeze protection
• 5 MP 3/8" UNF ports (5th port with protective bumper when not in use)
• Angled HP ports for optimal routing and transmitter mounting
• Forged rotating turret with parallel MP ports for improved hose orientation
• Ribbed diaphragm collar for improved heat exchange
• Double swivel hose for freedom of movement
• Tested for use Octopus – EN250A cold water
• Nitrox/Oxygen compatible according to EU and non-EU standards

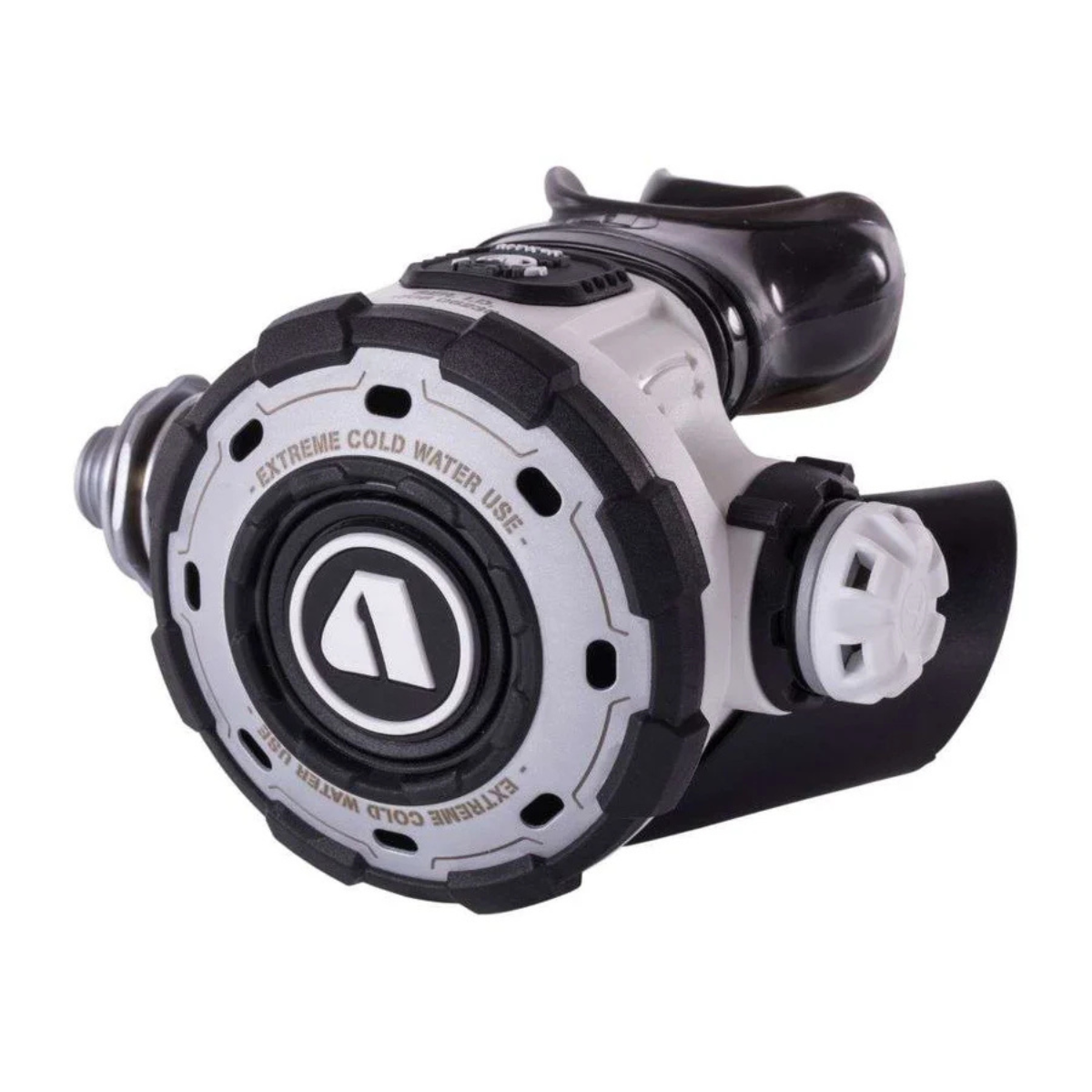

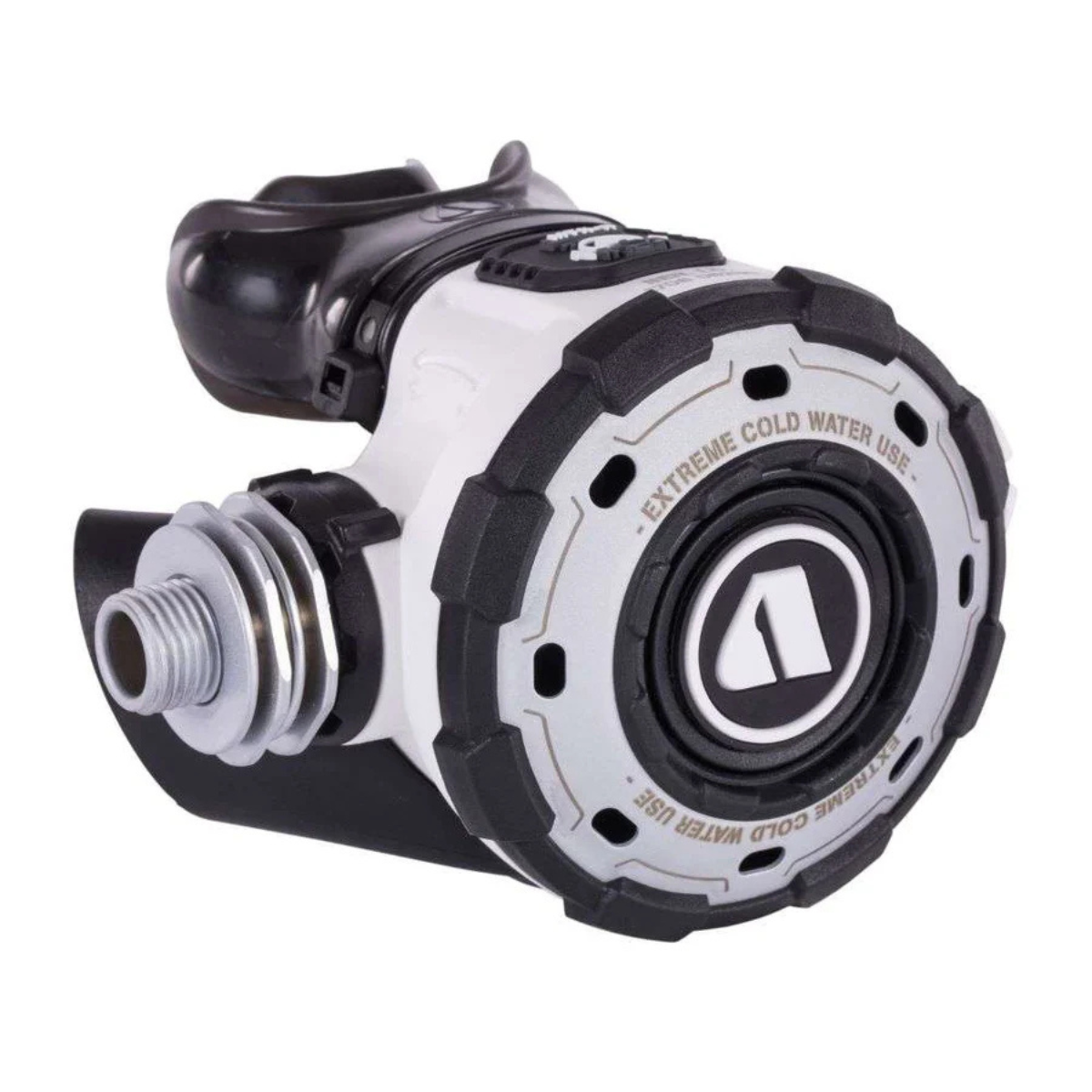

Second stage

• Lever-operated, pneumatically balanced poppet valve
• Large, controllable, self-cleaning purge button
• Front cover with chrome-plated brass insert for increased durability
• Large side and top elastomer protectors
• Left/right reversible configuration
• Patented heat exchanger for frost reduction
• Comfo-bite mouthpiece
• Double swivel hose
• Nylon braided hose for improved performance in cold water

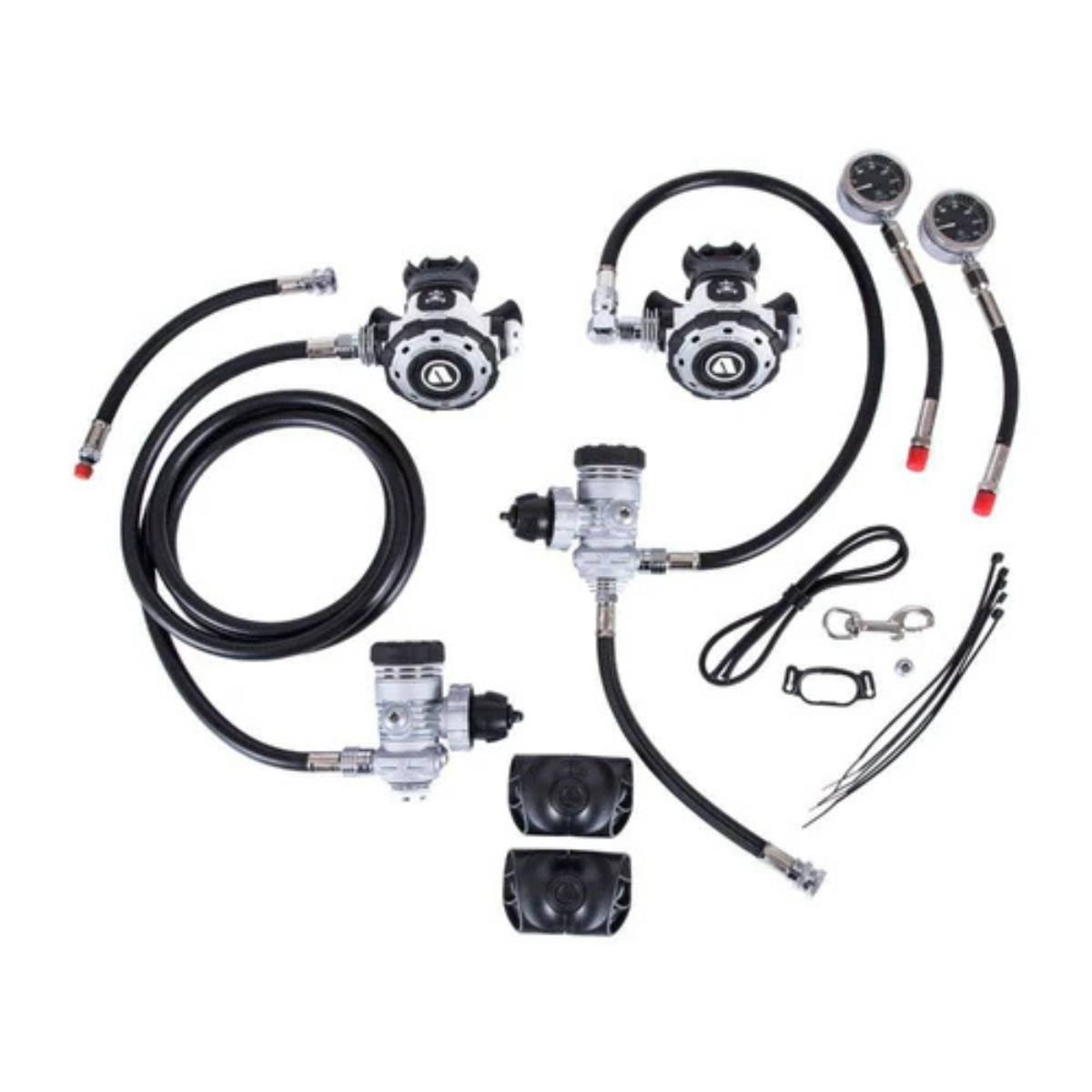

What the MTX-R Sidemount Kit Includes

• 2 x MTX-R second stage
• 2 x MTX-R first stage DIN
• 1 x Hose 210 cm Double Swivel
• 1 x Hose 65 cm Double Swivel
• 2 x 25 cm Flexi Seatec hose
• 2 x XTX RHS Exhaust Tee
• 2 x XTX LHS Exhaust Tee

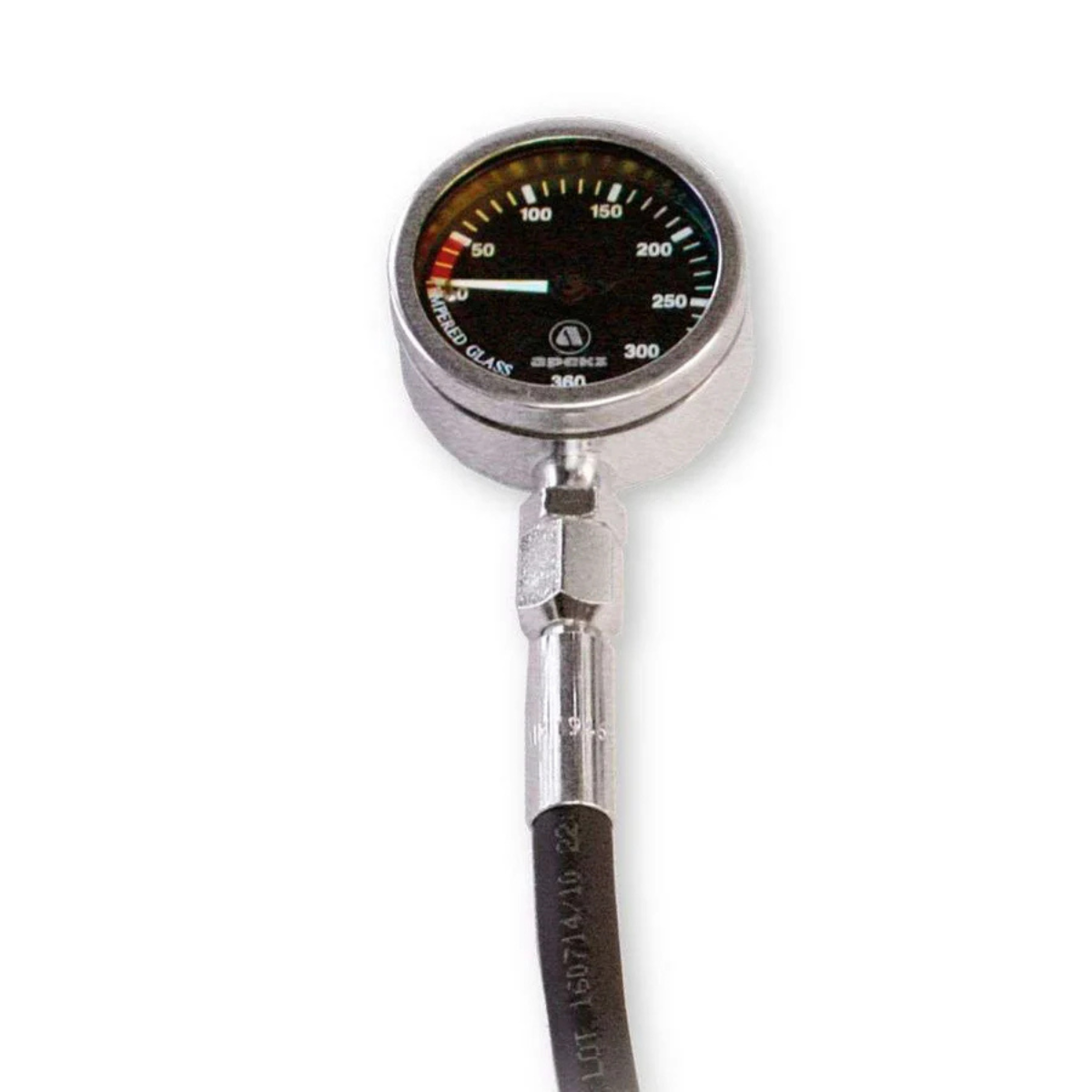

• 2 x Pressure Gauge Assembly
• 1 x 90° fixed elbow
• 1 x Stainless Steel Bolt Snap
• 1 x Bungee Cord
• 1 x Bungee Connector
• 1 x Bungee Connector Instruction Sheet
• 1 x Sidemount Set-Up Sheet
• 1 x Quick Reference User Guide
• 1 x Regulator Bag

Who is this set for?

✔ Technical divers
✔ Full sidemount configuration
✔ Cold water diving
✔ Cave diving
✔ Wreck diving
✔ Intensive use in extreme conditions
